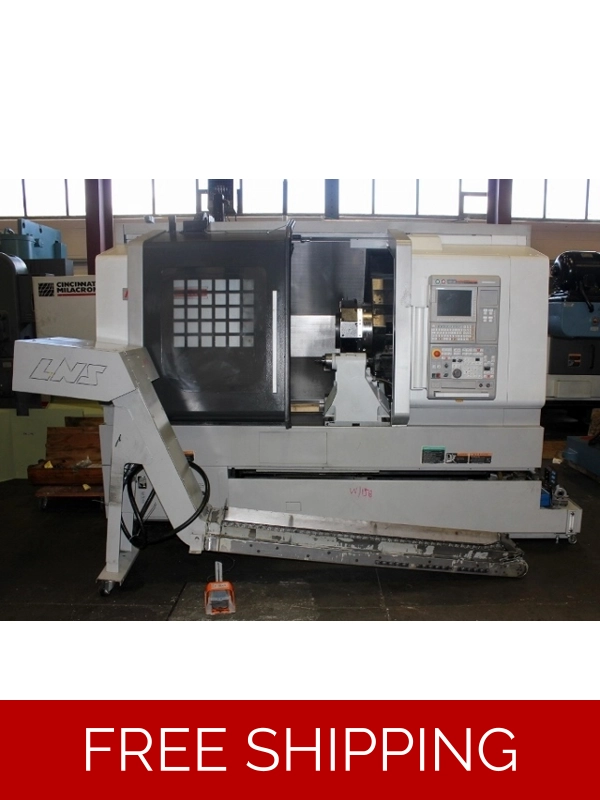

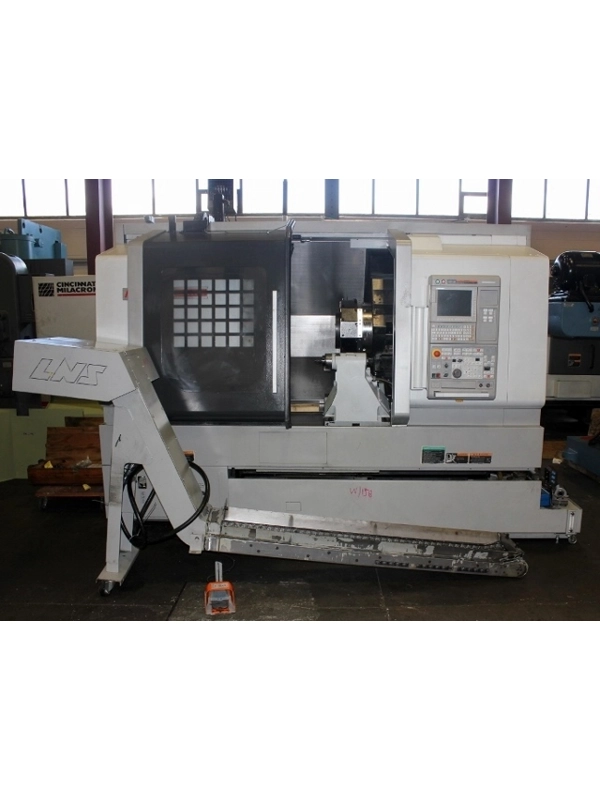

Capacity:
Swing over bed
Swing over bed with interference from front cover
Swing over cross slide
Maximum bar capacity
Standard turning diameter
Maximum turning diameter (main spindle)
Maximum turning length

Main Spindle:
Maximum speed
Spindle nose
Spindle bearing diameter
Spindle through hole diameter
Minimum spindle indexing angle (C-axis)

Travels:
X-axis travel
Y-axis travel
Z-axis travel

Feed Rate:
X & Z-axes rapid traverse rate
Y-axis rapid traverse rate
Tailstock advance/retract traverse rates
Maximum jog feedrate of tailstock

Turret:
Number of turret tool stations
Shank height for angled tool
Shank diameter for boring bar (main spindle)
Rotary tool machining capacity
Maximum rotary tool speed

Tailstock:
Travel
Spindle diameter
Spindle taper

Cutting time
Operation time
Power On hours
36.22"
23.58"
29.21"
3.15"
10.67"
14.4"
27.76"


4,000 R.P.M.
A2-8
5.51"
3.58"
.001°


10.24"
31.3"
+/-1.97"


1,181 I.P.M.
393.7 I.P.M.
787/275 I.P.M.
0 to 196.85 I.P.M.


12
.98"
1.97"
Drill - 1.02", Tap - M20
6,000 R.P.M.


28.9"
3.15"
#3 Morse

3,531 hours
4,354 hours
25,703 hours


Capacity:
Swing over bed..........................................36.22"
Swing over bed with interference from front cover.......23.58"
Swing over cross slide..................................29.21"
Maximum bar capacity...................................3.15"
Standard turning diameter...............................10.67"
Maximum turning diameter (main spindle).................14.4"
Maximum turning length..................................27.76"

Main Spindle:
Maximum speed..........................................4,000 R.P.M
Spindle nose.............................................A2-8
Spindle bearing diameter.................................5.51"
Spindle through hole diameter............................3.58"
Minimum spindle indexing angle (C-axis).....................001°

Travels:
X-axis travel......................................10.24"
Y-axis travel......................................31.3"
Z-axis travel.......................................+/-1.97"

Feed Rate:
X & Z-axes rapid traverse rate.......................1,181 I.P.M
Y-axis rapid traverse rate...........................393.7 I.P.M.
Tailstock advance/retract traverse rates..............787/275 I.P.M.
Maximum jog feedrate of tailstock.....................0 to 196.85 I.P.M.

Turret:
Number of turret tool stations...........................12
Shank height for angled tool...............................98"
Shank diameter for boring bar (main spindle).................1.97"
Rotary tool machining capacity..............................Drill - 1.02", Tap - M20
Maximum rotary tool speed.................................6,000 R.P.M.

Tailstock:
Travel...................................................28.9"
Spindle diameter.........................................3.15"
Spindle taper.............................................#3 Morse


Equipped With:

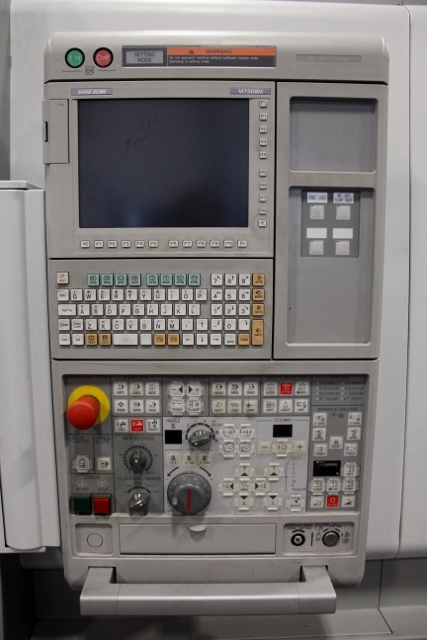

#M-730BM MITSUBISHI four-axis CNC with MAPPS (Mori Advanced Programming
Production System) conversational automatic programming, USB ports, and ethernet
interface
Twelve station turret with built-in direct drive milling motor and Y-axis control
(6) Live, (4) O.D., and (2) I.D. tool holders
10" Diameter KITIGAWA three-jaw hydraulic chuck
Remote electric foot pedal for the clamping and unclamping of the hydraulic chuck
Tailstock with built-in center
LNS Turbo hinge-type chip conveyor
Automatic door option
Tool pre-setter
DAIKIN "Eco Rich" hydraulic system with 1 H.P. pump motor
DAIKIN oil cooling unit
D-30 Chip Blaster high pressure coolant unit
Coolant system with external pump and tank
4.1 H.P. X, Y, & Z axes feed motors
7.5/5 H.P. (7.5 Minute/Continuous Duty) rotary tool drive motor
34.7/30 H.P. (30 Minute/Continuous Duty) main spindle drive motor
Machine is wired for 3/60/220 volt operation.

Approximate Weight (Machine Only): 13,640 Lbs.
