MAZAK NEXUS QTN-350-IIM,26.77",60",3,300-RPM,LIVE-MILL,C-AXIS,HYD.STEADY,2011 Our stock number: 2469


MAZAK QTN-350M-II 3-AXIS TURNING CENTER

Specifications:
MAX SIWING ........................... 29.5"
SWING OVER CARRIAGE .................. 20.87"
MAX. MACHINING DIAMETER .............. 16.54"
MAX. MACHINING LENGTH ................ 60.71"
BAR WORK CAPACITY .................... 4.0"
X-AXIS TRAVEL ........................ 10.13"
Z-AXIS TRAVEL ........................ 63.25"
CHUCK SIZE ........................... 12"
SPINDLE SPEED ........................ 3,000 RPM
NUMBER OF SPINDLE SPEED RANGES ....... 1 - STEPLESS
SPINDLE NOSE ......................... A2-11
SPINDLE BORE ......................... 4.41"
TURRET TYPE ............... 12 POSITION DRUM TURRET VDI TYPE
NUMBER OF TOOLS ...................... 12 TOOLS
TURRET INDEXING TIME ................. 0.25 SEC. / STEP
ROTARY TOOL SPINDLE RPM .............. 4,000 RPM
RAPID TRAVERSE X/Z/C ............ 1181/1299/555 IPM
TAILSTOCK STROKE ..................... 62.25
TAPER .......................... MT#4 BUILT-IN
MAIN SPINDLE ......................... 40 HP
ROTARY TOOL SPINDLE MOTOR ............ 10 HP
VOLTAGE .............................. 480 VOLTS
FLOOR SPACE REQUIREMENT .... 168" X 83" X 79"H
MACHINE WEIGHT ....................... 17,417 LBS

EQUIPPED WITH:

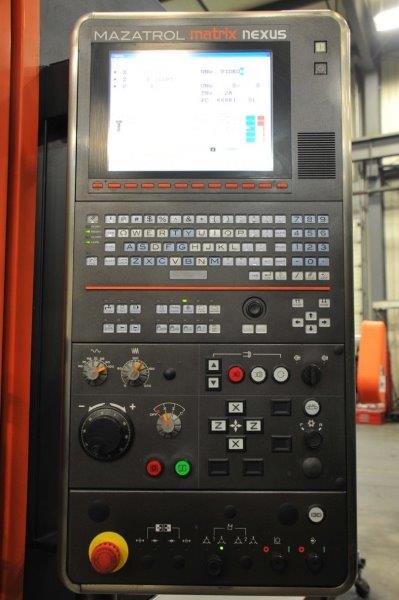

* MAZATROL MATRIX NEXUS CONTROL
MILLING-SPINDLE SYNCRONIZED TAPPING
TOOL EYE * EIA/ISO * RE-THREADING OPTION
THREAD START POINT COMPENSATION * KITAGAWA B-212 CHUCK
* SMW AUTOBLOCK SLU3.1 PROGRAMMABLE STEADY REST AND BASE $50,000 OPTION
* 213 PSI HI-PRESSURE COOLANT * COOLANT TEMPERATURE CONTROL
* CHIP CONVEYOR SIDE DISCHARGE * OPERATION LIGHT YELLOW
